Shenzhen Products >> Garment washing and finishing machine

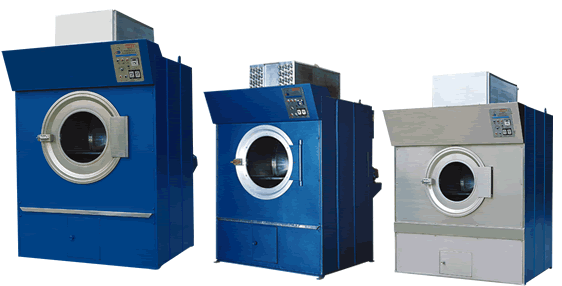

Dryer Series
Product description
These dryers of modern advanced level are thermal type that dries clothes by a heat exchanger, ideal for drying fabric made of linen ,nylon, silk as well as leather and latex. They are featured by not being limited by natural climate, no needing sunning yard of large area, saving labor and high drying speed. As the indispensable ideal equipment for high class restaurants, hotels, hospitals, factories and industries of bleaching-dyeing, latex and laundry, they would be of unexpected help in improving service quality and business growing. We sincerely recommend them to users and seek for users' comment.
GDT-Cloth granulating machine main technical parameters 　
Model  GDT-200  GDT-150  GDT-100
Cylinder size  φ1400x1070  φ1150x970  φ970x970
Cylinder rotational speed  28r/min  32r/min  32r/min
Cylinder capacity  90kg  68kg  45kg
Rated steam pressure  0.4-0.8Mpa  0.4-0.8Mpa  0.4-0.8Mpa
Main motor  2.2KW  1.1 KW  1.1 KW
Ventilator motor  2.2KW  1.5KW  1.1 KW
Heating mode  Steam  Steam  Steam
Outline dimension(LxWxH)mm
 1800xl 530x2500
1600x1250x2280
1570xl 100x2160
Weight  650kg  550kg  500kg


This machine is a product which is developed on the base of clothes dryer. A steam ejection device is installed inside itO With satisfactory granulating effect, advanced full automatic system's controlling and convenient operation, it's an ideal device for clothes granulating.

　                                                 GDP-Dryer machine main technical parameters 　　
 Model  GDP400 GDP300 GDP200 GDP150 GDP100 GDP80 GDP50
Cylinder size  φ1750x1350  φ1750x1070  φ1400x1070  φ1150x970  φ970x970  φ910x750  φ700x550
Cylinder spccd  28r/min  28r/min  28r/min  32r/min  32r/min  32r/min  32r/min
Cylinder capacity
(alter dewatered) 		 180kg  135kg  90kg  68kg  45kg  36kg  22kg
Rated steam pressure  0.4-0.8Mpa  0.4-0.8Mpa  0.4-0.8Mpa  0.4-0.8Mpa  0.4-0.8Mpa  0.4-0.8Mpa  0.4-0.8Mpa
Main motor power  4KW  3KW  2.2KW  1.1KW  1.1KW  0.75KW  0.55KW
Ventilator motor power  2.2KW  1.5KW  2.2KW  1.5KW  1.1KW  1.1KW  0.75KW
Dnjing time  35-45min  30-40min  30-40min  30-40min  25-30min  35-45min  30-40min
Electric heating capacity  　 　 　 25KW  20KW  18KW  15KW
Heating mode  Steam/hot oil  Steam/hot oil  Steam/hot oil  steam,hot oil,electric heating, LPG  Steam,hot oil,etectric heating, LPG  Steam,hot oil,etectric heating, LPG  Steam,hot oil,etectric heating, LPG
Dimensions
(LxW xH) 		 2730x1550
x2560
 1830x1860
x2680
 1800x1530
x2500
 1600x1250
x2280
1570x1100
x2160
1350x1020
x1950
1000x815
x1610
Weight  850kg  800kg  650kg  550kg  500kg  470kg  350kgÂ
