| Hard Winder |
 |
|
|
|
|
| Product description |
| |
This machine is used for winding cops into cones for warping,doubling or knitting process.
Option at
Cone size:Paper bobbin5° 57'and9° 15'
Drum:Steel plate drum Φ 79.4mm 2 1/2turns
Operating carriage,Cleaning Blower,Waxing device
Form of supply:supply with cone
 |

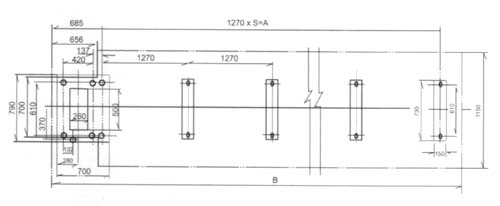

| Ovperall Dimensions(mm) |
| 锭数 |
S |
车脚距A |
机器总长B |
| 40 |
4 |
5080 |
5980 |
| 60 |
6 |
7620 |
8520 |
| 80 |
8 |
10160 |
11060 |
| 100 |
10 |
12700 |
13600 |
| 120 |
12 |
15240 |
16140 |
|
| |
| Specifications |
| Type |
Grooved drum type |
| Number of drum |
40,60,80,100,120 (standard.100s) |
| Drumgauge (mm) |
254 |
| Yarn traverse (mm) |
152 |
| Winding speed (m/min) |
510,575,643,713 |
| Cone size |
Wooden bobbin 5°57' |
| Size of full package(mm) |
Base Φ 200×152 |
| Drum Bakelite |
Φ82mm 2 1/2 turns |
| End-breakage automaUc stop motion |
individual spindle control |
| Tension device |
Disc type, the tension disc is availablein |
| in weights18.2,7.4, 3.7 grams |
| Club catcher |
cleaning blade |
| Ribbon breaking device |
Non-contact intermittent Switch device |
| Form of supply |
To suit spinning cops or threadBobbins of twisting frame |
| Bobbin holder |
Single-arm holding type |
| Drive: main motor |
2 pcs.1.8kw 1440r/min |
| Pilot motor |
1 pcs.0.18kw 960r/min |
|
|
|
|
